GYFTY Outdoor Self Supporting Fiber Optic Cable
Product Introduction

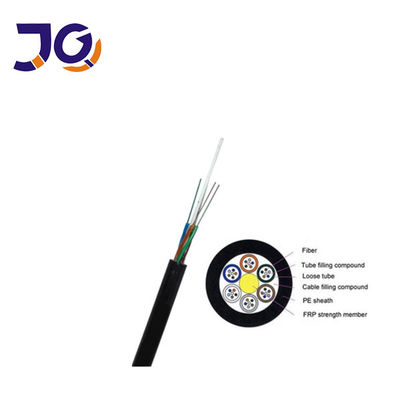

GYFTY fiber optic cable is designed for outdoor networks in high-voltage or strong electromagnetic environments. Its loose tube structure protects fibers and ensures stable signal transmission while remaining lightweight and easy to install.
Key Features
Applications
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788

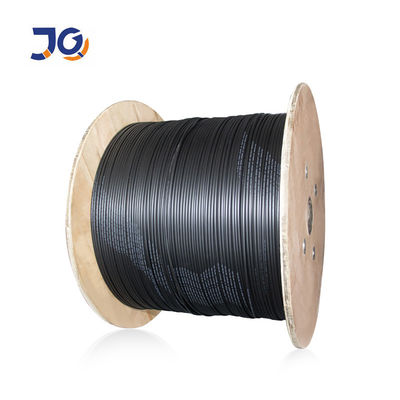

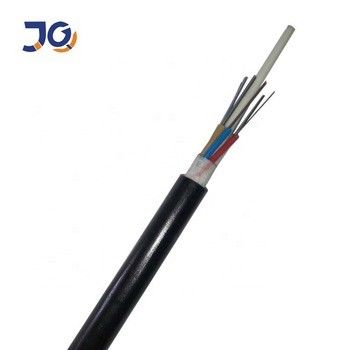

Detail product pictures
FAQ
1. What is GYFTY fiber optic cable used for?
It is mainly used for outdoor communication networks, especially in areas with strong electromagnetic interference.
2. Is GYFTY cable suitable for aerial installation?
Yes, its lightweight design makes it suitable for aerial and duct installations.
3. What fiber types are available for GYFTY cable?
It supports single-mode G652D and multimode fibers such as OM1, OM2, OM3, and OM4.
4. Does the cable have good weather resistance?
Yes, the PE outer sheath provides strong UV and environmental protection.
5. Is the cable easy to install?
Yes, its small diameter and lightweight structure make installation simple and efficient.
