| الحد الأدنى لكمية : | 1 كم | تفاصيل التغليف : | 1/2/3/4/5 كم في طبل خشبي واحد |
|---|---|---|---|
| وقت التسليم : | 3-5 دياس | شروط الدفع : | L/C ، T/T ، Western Union |
| القدرة على العرض : | 30 كم في اليوم |
| مكان المنشأ: | قوانغتشو الصين | اسم العلامة التجارية: | JQ/OEM/Customize |
|---|---|---|---|
| إصدار الشهادات: | ISO9001 ROHS CE FCC SDOC | رقم الموديل: | GYDTS/OPLC |
|
معلومات تفصيلية |
|||
| مادة سترة: | PE ، MDPE ، LSZH ، HDPE | القطر الخارجي: | 9mm |
|---|---|---|---|
| عدد الألياف: | 2-144 كور | بناء: | أنبوب الوحدة/الكابل الملتوي الذي تقطعت به السبل |
| عضو القوة: | سلك فولاذي/غزل زجاجي FRP | اسم المنتج: | كابلات الألياف الضوئية الهجينة |
| نوع الألياف: | YOFC أو حسب الطلب | تطبيق: | هوائي مجرى الهواء |
| لون: | أسود | طول: | 2 كيلومتر أو طول مخصص |
| نوع الألياف: | الوضع المفرد/multimode | لون الكابل: | أسود/أصفر/برتقالي/أخضر/أزرق/أرجواني/رمادي |
| علامة تجارية: | جيانغونغ أو OEM | سترة خارجية: | PE (HDPE/LDPE) ، PVC ، LSZH |
| نوع الكابل: | هجين | مادة الألياف الضوئية: | PMMA وأسلاك الكهرباء النحاسية |
| شكل المواد: | سلك مستدير | مادة سترة: | PVC/LSZH/OFNR/OFNP |
| مادة غمد: | PVC | عدد الألياف: | 2-144 النوى |
| معيار: | يد / تي 901 / إيك 60794-3-10 | خسارة العودة: | ≥50db |
| تثبيت: | هوائي / أنبوب / قناة | ||
| إبراز: | 6 core hybrid fiber optic cable,8 core photoelectric hybrid cable,OPLC fiber optic cable with copper wires,8 core photoelectric hybrid cable,OPLC fiber optic cable with copper wires |
||
منتوج وصف

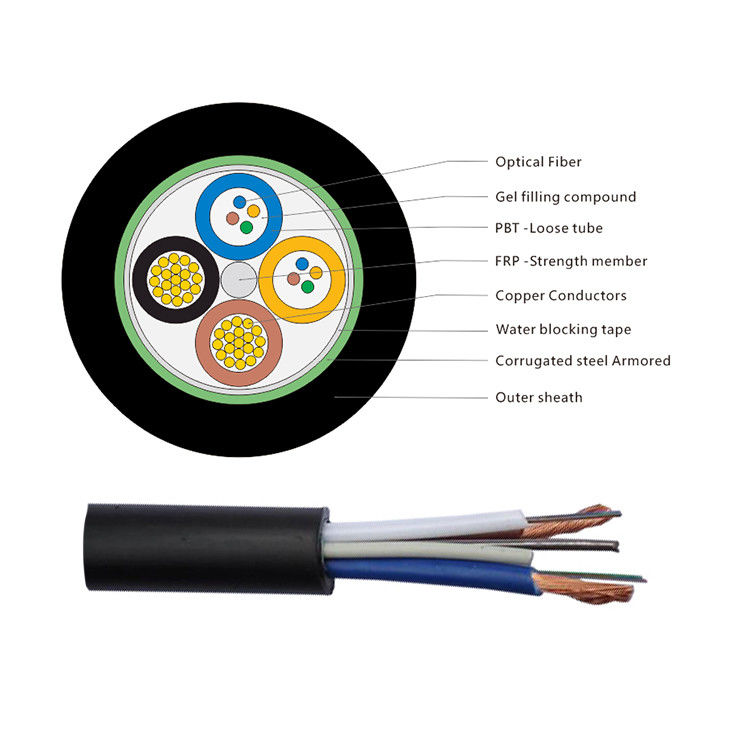

G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires
GYDTW/GYDTS
Hybrid Cable 2–24 Core GYXTW with Two Copper Power Wires
Composite fiber optic cables combine multiple components—such as optical fibers and metal conductors—within a single bundle. This design allows multiple transmission paths in one cable, reducing installation costs and lead time. The 250μm fiber is placed in a loose tube made of high-modulus plastic, filled with a water-resistant compound. The tube is wrapped with a layer of PSP, with water-blocking material between the PSP and the loose tube to ensure compactness and watertight performance. Two parallel steel wires run along both sides of the steel tape for added strength. The cable is completed with a durable polyethylene (PE) jacket.
Features
Excellent mechanical and temperature performance
High-strength loose tube with hydrolysis resistance
Special filling compound for optimal fiber protection
Compact, lightweight, flexible design with strong bend resistance
Low dispersion and attenuation; precise fiber excess length and controlled stranding ensure superior mechanical and environmental performance
Steel wire and corrugated steel tape armoring provide moisture resistance and crush protection
Optical Fiber Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Technical Parameters
| Range of Temperature | -20c~ +60c | |||||||||
| Riser | Type OFNR/OFN FT4 | |||||||||
| Plenum | Type OFNR/OFN FT6 | |||||||||
| Jacket | LSZH or PE | |||||||||
| Code name | cable cores |
Diameter (mm) |
Copper Wire (mm) |
Linear mass (kgk m) |
Tensile | Crush | Bending radius |
|||
| Short Term (N) |
Long Term (N) |
Short lerm N) |
Long Term (N) |
short Term N) |
Long Term (N) |
|||||
| OPLC-2*0.5 | 6~24 | 10 | 2*0.5 | 125 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.5 | 6-~24 | 10 | 4*0.5 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*0.75 | 6~24 | 10 | 2*0.75 | 128 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.75 | 6~24 | 10 | 4*0.75 | 135 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| oPLC-2*1.0 | 6~24 | 10 | 2*1.0 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.0 | 6-~24 | 12 | 4*1.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*1.5 | 6~24 | 12 | 2*1.5 | 140 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.5 | 6~24 | 12 | 4*1.5 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*2.5 | 6~-24 | 12 | 2*2.5 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*2.5 | 6-~24 | 14.5 | 4*2.5 | 180 | 1500 | 600 | 1000 | 300 | 20D | 10D |

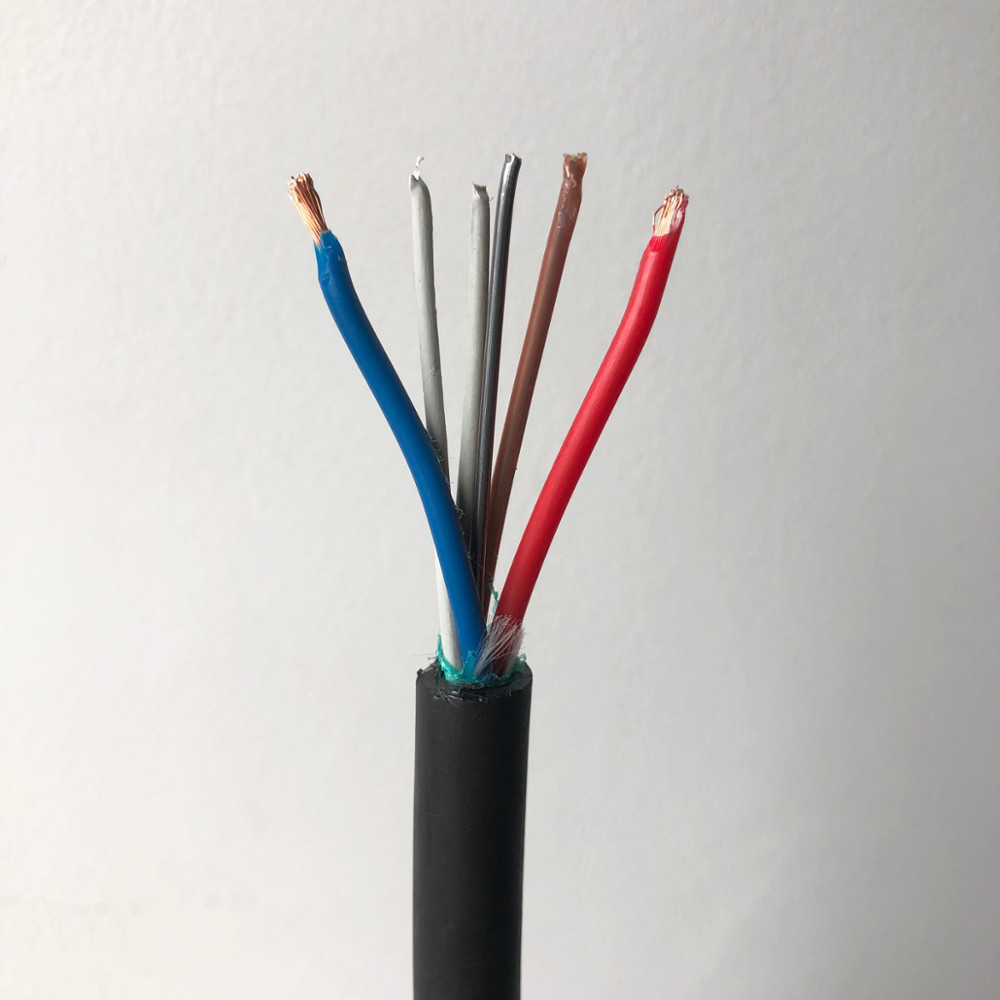

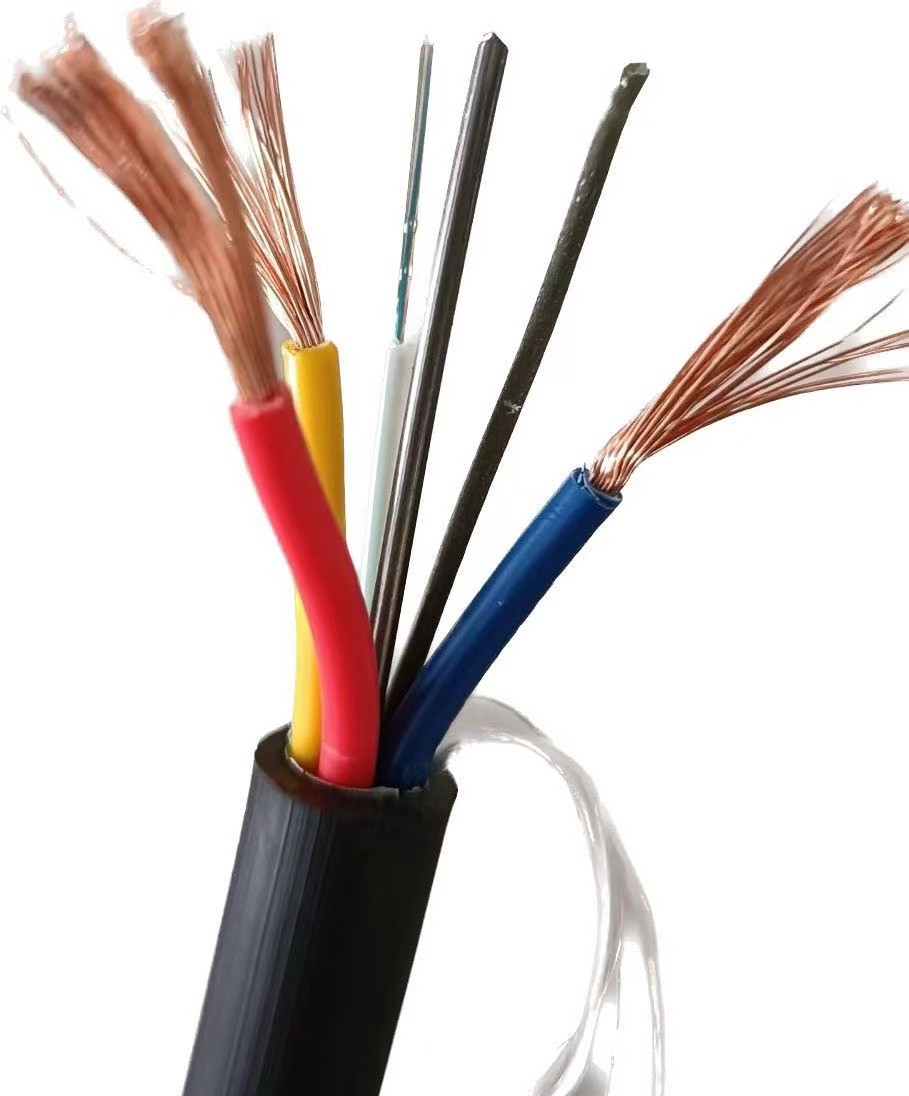

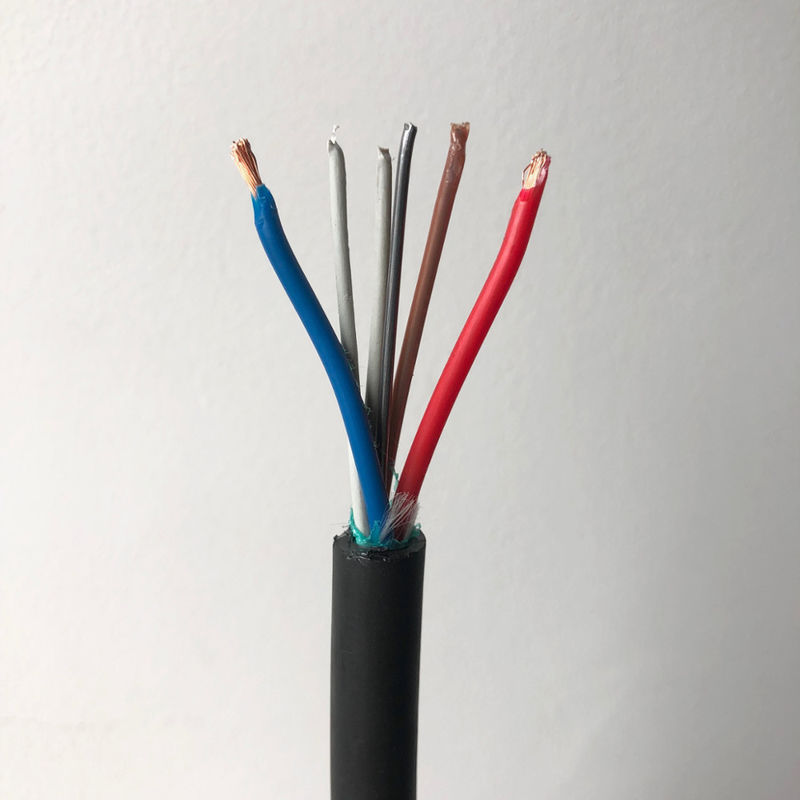

Product Image
Application
Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.
Packing&Delivery
1/2/3/4/km in one wooden drum,deliver days:5-8work days
