منزل المنتجاتالشكل 8 كابل الألياف البصرية24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger
24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger
24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger
ﺎﺘﺼﻟ ﺍﻶﻧ

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger

الحد الأدنى لكمية : 1 كيلومتر تفاصيل التغليف : طبل خشبي
وقت التسليم : 2-5 أيام شروط الدفع : خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام
القدرة على العرض : 8000 كيلومتر شهريًا
مكان المنشأ: قوانغدونغ، الصين اسم العلامة التجارية: JQ/OEM/Customize
إصدار الشهادات: CE/ISO9001/RoHS/FCC رقم الموديل: GYTC8S

معلومات تفصيلية
رقم الموديل: GYTC8S-24 48 كور نوع الألياف: الوضع المفرد G652D أو كطلبك
سترة: PE ، MDPE ، LSZH ، PVC ، HDPE عضو القوة المركزية: سلك فولاذي
درع: شريط الصلب طَرد: طبل خشبي/مخصص
تطبيق: اتصالات / شبكة رقم الألياف: 2-12 نواة من الألياف
إبراز:

24 core GYTC8S aerial fiber cable,48 core steel messenger fiber optic,figure 8 self supporting fiber cable

,

48 core steel messenger fiber optic

,

figure 8 self supporting fiber cable

منتوج وصف

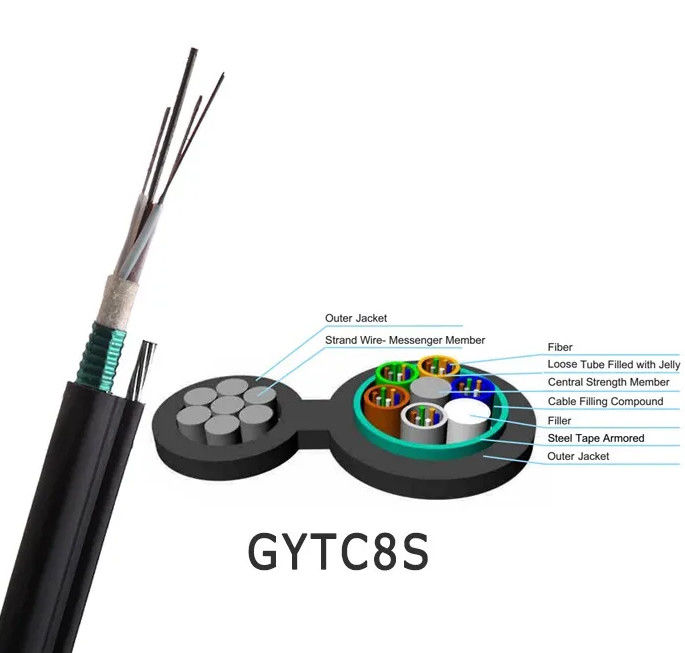

GYTC8S Optical Cable Overview
GYTC8S is a self-supporting aerial fiber optic cable with a stranded loose tube design, supporting 1–144 fibers. It features a steel messenger wire, corrugated steel tape armor, and a PE outer sheath for excellent tensile strength, crush resistance, and fiber protection. Ideal for long-distance and LAN communication.



Applications

  • Outdoor aerial installations

  • Long-distance communication lines

  • LAN and data transmission networks

  • Subscriber access and junction systems

  • CATV and computer networks

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 0





24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 1

Certification:

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 2



FAQ



1. Who are we?
We are a fiber optic cable manufacturer in Guangdong, China, established in 2017, with 11–50 staff and global markets across Africa, South America, Europe, and Asia.



2. How do we ensure quality?
Pre-production samples and final inspections before shipment guarantee stable quality.



3. What products do we offer?
Fiber optic cables, FTTH drop cables, communication cables, indoor and outdoor fiber cables.



4. What services do we provide?
FOB/EXW delivery, multiple payment options (T/T, L/C, PayPal, etc.), in USD or CNY.



5. What is the MOQ?
1KM per order.



6. Can I get a sample?
Yes, free samples are available; buyers only pay for shipping.



7. Do you accept OEM/ODM?
Yes, our engineering team supports full customization.



8. What is the delivery time?
Usually 3–7 days after order confirmation, depending on quantity.
