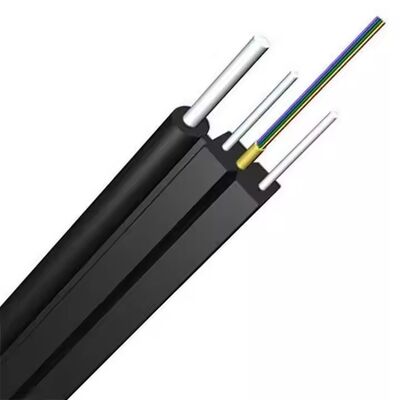

Outdoor FTTH Fiber Optic Drop Cable G657A1 Self Supporting 1 2 4 Core LSZH 2.0x5.0mm Steel Wire Strength Member
The FTTH fiber optic drop cable is designed for outdoor last-mile access networks, connecting distribution points to end users.

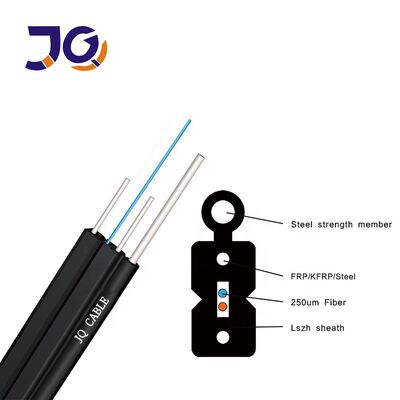

The optical fiber is placed between two parallel steel wires or FRP strength members, providing excellent tensile and crush resistance.
The cable is protected by a low smoke zero halogen (LSZH) sheath, ensuring safety, durability, and easy installation.
1.0mm steel wire strength member for self-supporting aerial installation
Dual FRP or steel wire ensures high crush resistance
Novel flute design for easy stripping and fast splicing
LSZH flame-retardant sheath safe for outdoor use
Compact size 2.0x5.0mm lightweight and flexible
Complies with Telcordia GR-326-CORE standard
• FTTH outdoor access network
• Aerial self-supporting drop installation
• Last-mile broadband connection
Technical parameters
| Product Model |
Fiber Count (core) |
CableDiameter(mm) | CableWeight (kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance Long/Short Term(N) |
Bending Radius Static/ Dynamic |
| GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
| GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
| GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
| GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
| GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
| GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
| GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
Product detail

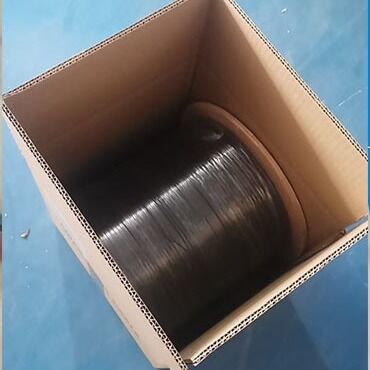

Package
Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in fiber optic cable, FTTH drop cable and patch cord production. Our factory is located in Guangzhou, China. Factory visits are welcome.
2. How do you ensure product quality?
All fiber optic cables are 100% tested before delivery. Free samples are available for quality evaluation after price confirmation.
3. Do you accept small orders?
Yes. Small orders are accepted. We support new projects and believe long-term cooperation starts from small orders.
4. What is your delivery time?
Normally 3–7 working days, depending on order quantity. We always arrange production and shipment as quickly as possible after payment.
5. Do you provide OEM service?
Yes. OEM and logo printing services are available. Custom designs are welcome.
