| الحد الأدنى لكمية : | 2 كم | تفاصيل التغليف : | طبل خشبي |
|---|---|---|---|
| وقت التسليم : | 5-8 أيام عمل | شروط الدفع : | خطاب الاعتماد، تي/تي، ويسترن يونيون |
| القدرة على العرض : | 4500 كيلومتر في الشهر |
| مكان المنشأ: | قوانغتشو، الصين | اسم العلامة التجارية: | JQ/OEM/Customize |
|---|---|---|---|
| إصدار الشهادات: | ISO9001 ROHS CE-EMC FCC SDOC | رقم الموديل: | كابل ASU/GYFFY |
|
معلومات تفصيلية |
|||
| عدد الألياف: | 12 24 نواة | يكتب: | جوي |
|---|---|---|---|
| طول الامتداد: | 80 م أو 100 م | نموذج الألياف: | G652D ، G657A1 ، G657A2 |
| غمد: | PE/LSZH/PVC/MDPE/HDPE | عضو القوة: | FRP / KFRP |
| غمد اللون: | أسود أو تخصيص | العلامة التجارية الألياف: | واي أو أف سي/فايبر هوم/فوجيكورا/كورنينج |
| إبراز: | FRP aerial fiber optic cable,12 core ASU 80 drop cable,outdoor FTTH cable with warranty,12 core ASU 80 drop cable,outdoor FTTH cable with warranty |
||
منتوج وصف

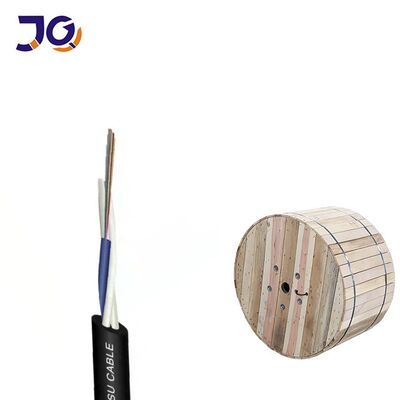

Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY Outdoor FTTH Cable Factory Price

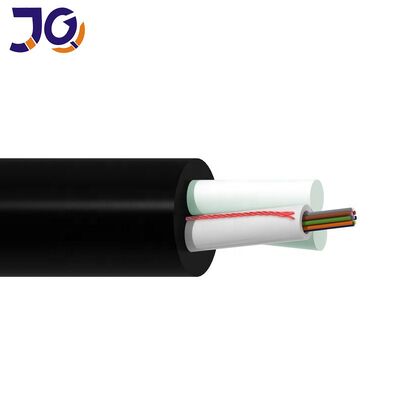

ASU cable uses a stranded loose-tube design. The 250μm fibers are housed in high-modulus PBT tubes, which are stranded around a central FRP non-metallic strength member to form a compact core. The core is filled with water-blocking compound and protected with a thin PE sheath.
Compact structure and lightweight design
Dual FRP strength members for enhanced tensile performance
Optional gel-filled or gel-free structure for reliable waterproofing
Cost-effective with high fiber density
Suitable for short-span aerial installation and duct laying
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical parameter
Cable Core |
Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80,1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
1. Are you a trading company or manufacturer?
We are a professional manufacturer with over 10 years of experience in fiber optic cable, drop cable, and patch cord production. Our factory is located in Guangzhou, and you are always welcome to visit.
2. How is the product quality ensured?
Every fiber is fully tested before shipment. After price confirmation, free samples can be provided for quality checking.
3. Do you accept small orders?
Yes, small orders are welcome. We support new projects and understand that many businesses start with small quantities.
4. What is the delivery time?
Generally 3–7 working days, depending on the order quantity. We will arrange shipment as soon as your payment is received.
5. Do you offer OEM service?
Yes, OEM is available. We can print your logo and customize according to your requirements.
