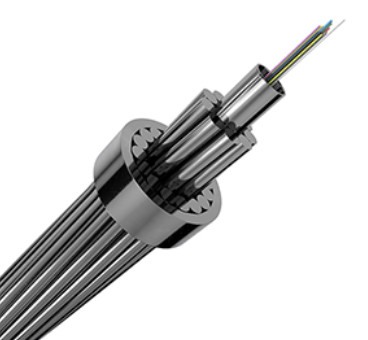

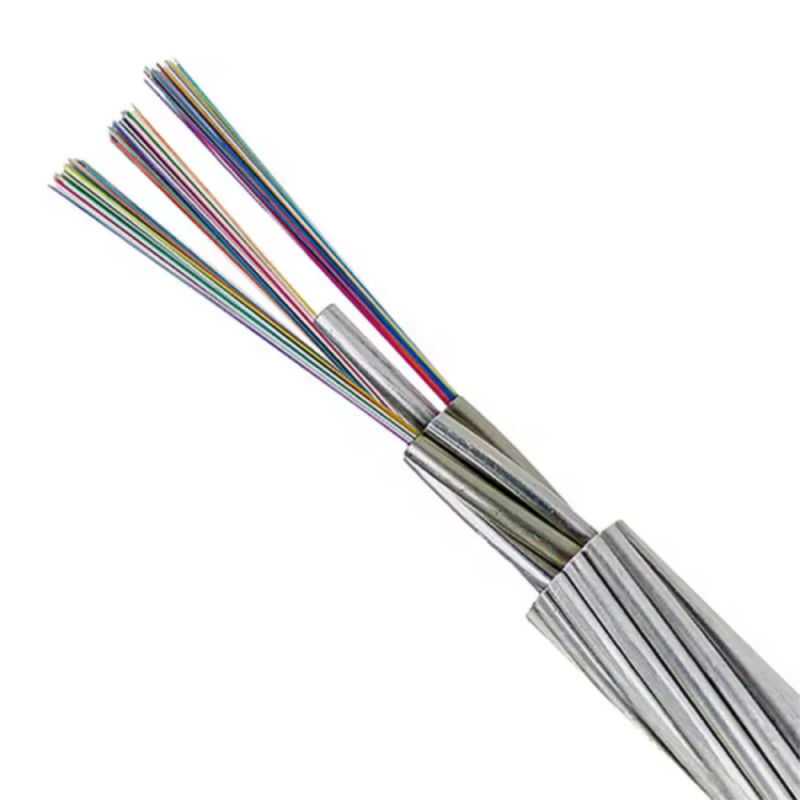

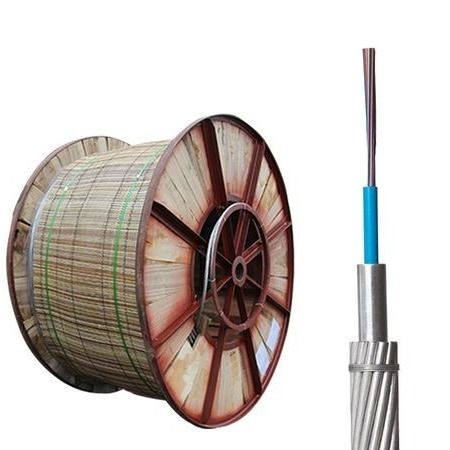

OPGW Fiber Optic Cable 24 48 Core Single Mode G652D Outdoor Power Line Fiber

منتوج وصف

OPGW Fiber Optic Cable – Dual Function Overhead Ground Wire

Product Overview
OPGW (Optical Power Ground Wire) cables integrate optical fibers into the overhead ground wire of high-voltage transmission lines, providing both electrical grounding and fiber optic communication in a single cable. This dual-purpose design enhances system reliability, reduces infrastructure complexity, and lowers installation costs. The metal-reinforced construction ensures durability, high tensile strength, and resistance to environmental stress.

Key Features & Advantages

• Advanced Fiber Protection: Stainless steel tubes with water-blocking compounds safeguard optical fibers from moisture and physical damage.

• High Strength and Compact Design: Robust construction ensures excellent tensile strength and structural stability for harsh environments.

• Minimal Electromagnetic Interference: Reduces signal interference from power grid currents, ensuring reliable data transmission.

• Easy Installation: Compatible with standard ground wire specifications, suitable for both new builds and replacement projects.

• Long-Distance High-Speed Transmission: Supports high-speed data over long distances with excellent environmental resistance to lightning, wind, and temperature variations.

Applications
Ideal for smart grid infrastructure, OPGW cables provide a reliable communication backbone integrated directly into power lines. They enable real-time monitoring, fault detection, and efficient data transfer, improving grid performance while reducing downtime and installation costs.

OPGW Fiber Optic Cable – Structure and Applications

Applications
OPGW (Optical Power Ground Wire) cables are used for power line communication, relay protection, and automatic control systems, installed alongside high-voltage transmission lines. They provide reliable fiber optic connectivity while maintaining electrical grounding and lightning protection.

Cable Structure
The stranded OPGW features two or three layers of aluminum-clad steel (ACS) wires, or a combination of ACS and aluminum alloy wires. This design ensures mechanical strength, electrical conductivity, and durability, meeting the requirements of overhead power lines.

Technical Specifications

• Fiber Types: G652D, G655C, G657A1, 50/125, 62.5/125, OM3, OM4 (various options for different applications)

• Fiber Core Count: Up to 96 cores

• Voltage Range: Suitable for power lines up to 110 kV and below

• Design Highlights: Central stainless steel tube with aluminum covering for robust protection

Key Benefits

• High fiber capacity for modern communication needs

• Suitable for new and replacement overhead lines

• Provides lightning protection by safely conducting short-circuit currents

• Durable design for long-term outdoor performance

OPGW with PBT Aluminum Tube

OPGW Typical Designs of Stranded Stainless Steel Tube

Typical design for Double Layer:

Typical design for Three Layer:

OPGW Typical Designs of Central AL-covered Stainless Steel Tube

Typical Design for Single Layer

Typical Design for Double Layer

OPGW Typical Designs of Central Stainless Steel Loose Tube

Typical design for Single Layer:

Typical design for Double Layer:

FAQ

1. Are you a manufacturer or a trading company?
We are a manufacturer with over 10 years of experience in researching, developing, and producing fiber optic cables, drop cables, patch cords, and more. Our factory is based in Guangzhou, and visits are always welcome.

2. How is your product quality?
All fibers are fully tested before delivery to ensure high quality. You can also request free samples after price confirmation to check our standards.

3. Do you accept small orders?
Yes, small orders are accepted. We support new customer projects, as we understand that business often begins with small quantities.

4. What is the typical delivery time?
Delivery usually takes 3–7 working days, depending on the order size. Shipments are arranged promptly once payment is received.

5. Do you offer OEM services?
Yes, OEM services are available. We can print your logo on products and accommodate custom requirements.
